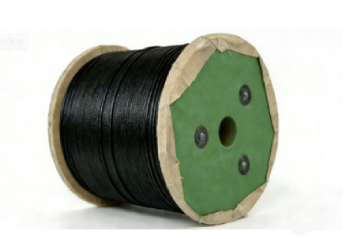

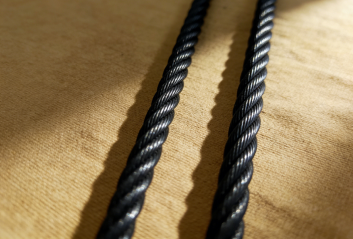

Products > BLACKENED WIRE ROPE
 |
 |
 |
| BLACKENED WIRE ROPE |
| Galvanized |
| Application ：Stage equipment,Transportation,Safety protection,etc. |
| Nominal Diameter |
Approx. Weight |
Minimum Breaking Load (KN) |
|
| kgs/100m |
1770N/mm2 |
1960N/mm2 |
|
| mm |
IWS |
IWS |
IWS |
| 2 |
1.57 |
2.54 |
2.81 |
| 3 |
3.54 |
5.72 |
6.33 |
| 4 |
6.29 |
10.2 |
11.3 |
| 5 |
9.83 |
15.9 |
17.6 |
| Nominal Diameter |
Approx. Weight |
Minimum Breaking Load (KN) |
|
| kgs/100m |
1770N/mm2 |
1960N/mm2 |
|
| mm |
IWS |
IWS |
IWS |
| 2 |
1.57 |
2.54 |
2.81 |
| 3 |
3.54 |
5.72 |
6.33 |
| 4 |
6.29 |
10.2 |
11.3 |
| 5 |
9.83 |
15.9 |
17.6 |
| Nominal Diameter |
Item |
Approx. Weight |
Minimum Breaking Load (lbs) |
|
||
| inch |
kgs/1000ft |
lbs/1000ft |
Galvanized |
|||
| 3/64" |

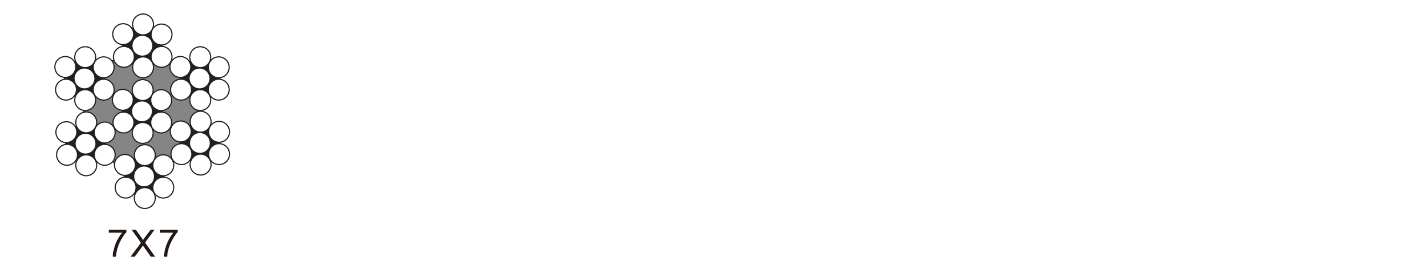

7X7 |
1.91 |
4.2 |
270 |
||
| 1/16" |
7X7 |
3.40 |
7.5 |
480 |
||
| 3/32" |
7X7 |
7.26 |
16.0 |
920 |
||
| 1/8" |
7X7 |
12.93 |
28.5 |
1,700 |
||
| |
|
|
|
|
||
| 3/32" |

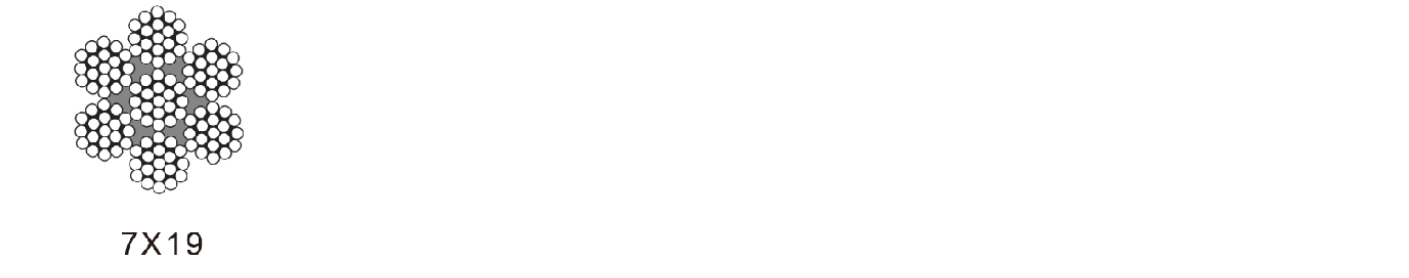

7X19 |
7.89 |
17.4 |
1,000 |
||
| 1/8" |
7X19 |
13.15 |
29.0 |
2,000 |
||
| 5/32" |
7X19 |
20.41 |
45.0 |
2,800 |
||
| 3/16" |
7X19 |
29.48 |
65.0 |
4,200 |
||
| 1/4" |
7X19 |
49.90 |
110.0 |
7,000 |
||
| 5/16" |
7X19 |
78.47 |
173.0 |
9,800 |
||
